±0.5% 정확도의 염가형 멀티메타

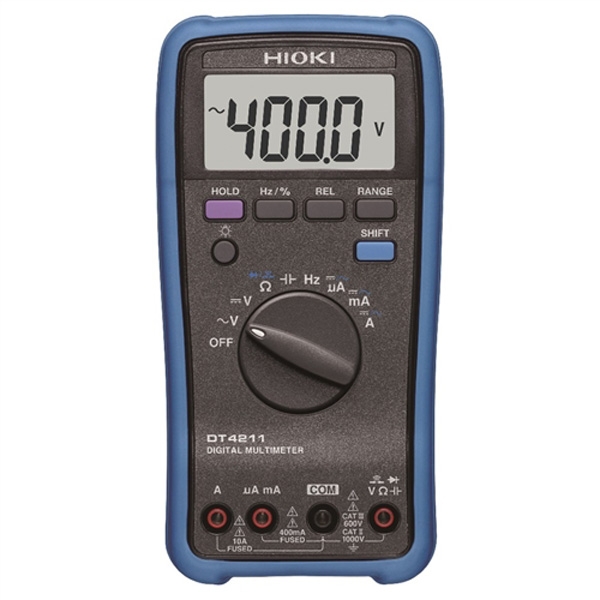

제조사HIOKI제품명디지털 멀티미터 DT-4211제품번호DT-4211

DC Voltage

400.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.5 % rdg. ±3 dgt.

AC Voltage 40 to 500 Hz

400.0 mV to 1000 V, 5 ranges, Frequency characteristics: 40 Hz - 500 Hz
Basic accuracy: ±1.0 % rdg. ±5 dgt. (Average rectified)

Resistance

400.0 Ω to 40.00 MΩ, 6 ranges, Basic accuracy: ±0.5 % rdg. ±2 dgt.

DC Current

400.0 μA to 10.00 A, 6 ranges, Basic accuracy: ±1.2 % rdg. ±3 dgt.

AC Current, 40 to 500 Hz

400.0 μA to 10.00 A, 6 ranges, Frequency characteristics: 40 Hz - 500 Hz
Basic accuracy: ±1.2 % rdg. ±5 dgt. (Average rectified)

Temperature (use with DT4910)

N/A

Voltage Detection

N/A

C (capacitance)

50.00 nF to 100.0 μF, 5 ranges, Basic accuracy: ±2.0 % rdg. ±5 dgt.

Frequency

AC V measurement: 5.000 Hz (1 Hz or more) to 5.000 MHz, 7 ranges, Basic accuracy: ±0.1 % rdg. ±3 dgt.
Minimum sensitivity voltage: Square wave of 1.5 Vrms

Continuity Check

Continuity threshold [ON]: 90 Ω ±40 Ω or less (Buzzer sound)

Diode test

Open terminal voltage: 3.0 V or less, Testing current 0.5 mA

Environment

Operating temperature: -10 to 50 °C, Storage temperature: -20 to 60 °C

Other functions

Display value hold, Relative display, Auto-power off, Back light

Display

4-digits LCD, max. 4000 counts

Display refresh rates

3 times/s

Power supply

LR6 alkaline batteries ×2, R6P manganese batteries ×2,
Continuous use: 800 hours (When using alkaline batteries)

Dimensions and mass

91.6 mm (3.61 in)W × 180.6 mm (7.11 in)H× 57.1 mm (2.25 in)D, 388 g (13.7 oz) (including batteries and holster)

Accessories

Test Lead L9206 ×1, holster (attached) ×1, instruction manual ×1, R6P manganese battery ×2
