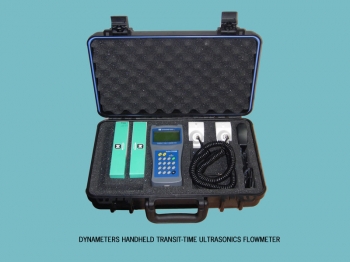

| 제품구입시 주의사항 * 에스코용 장비/에너지진단장비용 초음파유량계 DMTFH/DMTFP 모델을 구입하실때 반드시 데이터로거와 트랜스듀서가 2개가 있는지 확인하시기 바랍니다 --제품 구입후 확인하시기 바랍니다.... * 특 징 모델명 : DMTFH-3-N-B/DH-M-N-S1/DH-L-N-S1 1, 유 속 : 0~12m/s 2, PIPE 40~4,750mm( L TYPE 센서와 M type 센서가 있어야 한다) 3, 데이터로거 : 200,000 데이터로거 4, 측정온도 : -40~121도 DMTFH Model은 Handheld형 초음파유량계이며, 이제품은 이제품은 주로 깨긋한 액체의 흐름을 측정하기 위한 계측기이지만, 어느정도 부유물질과 공기가 포함된 액체의 측정도 가능하다 꽉찬 파이프속의 액체의 흐름을 단기,장기적으로 측정하는데 적합하다. 측정센서가 자성을 띠고있어 장착이 용이하다 * 용 도 흐르는 유체의 흐릅조사와 투명,불투명 액체의 흐름조사에 적합하다... * 적용대상 1, 물(따듯한물, 찬물,), 바닷물측정에 사용 2, 작은양의 찌거기가 있는 하수와 오수 3, 기름종류, 윤활류,디젤오일,연료기름,화학물질,알코올,솔벤트,산류등 4, 전력 발전소( 원자력,열,수자력 발전소)등 열에너지에 사용하는 물흐름 측정... 5, 야금과 탄광의 산발견에 사용 6, 펄프나 종이 생산시 유체의 흐름측정 7, 파이프라인 누출찾기, 검사 8, 에너지측정와 균형 9, 네트워크 모니터링 The DMTFH handhold Clamp-on Ultrasonic Flowmeter(Handheld형 초음파유량계) Specifications: Transmitter | Power Supply | 3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger | Velocity(유 속) | 0 ~ 12m/s | Display | 4 line≠16 English letters LCD back lit, can display total flow, flow rate, velocity and meter running status etc. | Units Rate Totalized | User Configured (English and Metric); Rate and Velocity Display; (FWD, NET, REV or BATCH) gallons, ft³, barrels, lbs, litters, m³,kg | Output | 4~20mA, Pulse, Relay, RS232C or RS485, options: up to 8 GB Data logger, Hart +(4~20mA), Modbus | Accuracy | ÷1.0% of reading at rates >0.5 m/s | ÷0.005 m/s of reading at rates<0.5 m/s | Sensitivity | Flow Rate: 0.001ft/s (0.0003m/s) | Repeatability | 0.2% of reading | Security | Keypad lockout, access code enable | Dimensions and Weight | 100*204*34 Weight: <0.6kg | Transducer | Liquid Types Supported | Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration | Suited Liquid Temperature | Std. Temp. Transducer: -40→~121→ High Temp. Transducer : -40→~250→ | Dimensions and Weight | S: Size:42*25*25; weight:<0.3kg M: Size:60*43*43; weight:<0.6kg L: Size:80*53*53; weight:<1.0kg | Pipe Size | Std M transducer: 40-1000mm L transducer: 1000-4570mm S transducer: 12-50mm K-mode round transducer: 12-50mm | Accessories | Portable Case | Size: 445*290*130; Weight: <3.5kg | Couplant | Dow Corning 111 or 732 (112 for high temp.) | Elastic Belts | 2 bundles | Battery Charge | 1 pcs | Data Logger Software | Optional 512M to 8GB SD card (200,000 data logger) Windows-based Software Utility, data logging, data report, and data curve and analyze. |
| Model | DMTFH | X | X | - | X | / *（Transducers） | | Handheld Series | | Output Selection 1 | | N―N/A | | 1―OCT Pulse (Flow Rate or Totalizer Output） | | 2―RS232 | | 3―Data Logger & Software | | Output Selection 2 | Same as Output Selection 1 | | Product Service Code | | Please contact the factory for the details, if not available, select: N | | | | | | | | Model | D H | X | X | X | | | Transducer Type | | S―Small(12-50mm) | | M―Middle(40-1000mm) | | L―Large(1000-4570mm) | | Transducers Temperature | | N―-40∥121→ | H―-40∥250→（Exclusive S, L transducer type） | | Cable Length | | S1 -- 4m Flexible cable S2 -- 5m non-Flexible cable L1 -- 8m Flexible cable L2 -- 10m non-Flexible cable | | Parts Number Construction example: For example：DMTFH-1N-N/DH-MNS1 Note: DMTFH Handheld ultrasonic flow meter, OCT pulse output, Non-multiple output selections; welded directly for the pipe of transducers, standard M type transducer, standard temperature ,4 meters Flexible cable. |
|
| |
