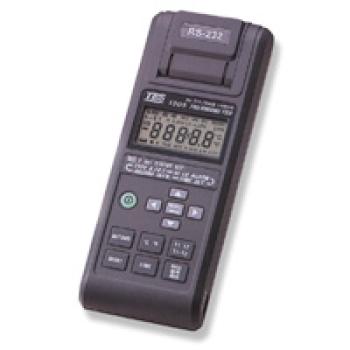

| | Type K, J, E, T. Thermocouple Input ㆍDual Channels with multi-functions scanner. (T1, T2 &T1-T2) ㆍ4000 Records point Data Logging Capacity | | Measuring Range | Type K : -200~1333℃(-328~2431℉)
Type J : -200~760℃(-328~1400℉)
Type E : -200~703℃(-328~1297℉)
Type T : -200~400℃(-328~752℉) | | Resolution | 0.1℃/0.1℉ | | Accuracy | Type K : ±(0.01%rdg+0.5℃) (0~982℃)
: ±(0.05%rdg+0.5℃) (982~1333℃)
: ±(0.01%rdg+0.9℉) (32~1800℉)
: ±(0.01%rdg+0.9℉) (1800~2431℉)
Type J : ±(0.01%rdg+0.5℃) (0~760℃)
: ±(0.01%rdg+0.9℉) (32~1400℉)
Type E : ±(0.01%rdg+0.5℃) (0~703℃)
: ±(0.01%rdg+0.9℉) (32~1297℉)
Type T : ±(0.01%rdg+0.5℃) (0~400℃)
: ±(0.01%rdg+0.9℉) (32~752℉)
K/J/E/T : ±(0.5%rdg+0.7℃) (-200~0℃)
: ±(0.5%rdg+1.4℉) (-328~32℉) | | Temperature coefficient | Less than 0.1 time the applicable accuracy specification per ℃(℉) | | Input Protection | 60VDC or 24Vrms AC maximum input voltage on any Combination of input Connector | | Sampling Rate | 1 time/sec | | Operating Conditions | 0~50℃(32~122℉)
0~90%R.H. | | Power source | 6 pcs size AAA Alkaline Battery | | Battery Life | Approx. 72 hours(excluding beeper) | | Size | 193(L) × 74(W) × 37(H)mm | | Weight | Approx. 300g | | Accessories | 1. Carrying case, Instruction manual, Battery, type K probe(wire), Alarm(OVER, UNDER) MINI DIN cable
2. Software for WINDOWS, RS-232 Cable, 9 pin to 25 pin Gender changer |
|
| | |
|
